AUTOMATIC L SEALERS

Automatic l sealers

automatic l sealers

MANUFACTURER OF AUTOMATIC L SEALERS FOR SHRINK FILM

     automatic l sealers

AUTOMATIC L SEALERS FOR SHRINK FILM

FOR HIGH QUALITY PACKAGING

AUTOMATIC L SEALERS PACKAGING MACHINES
FOR SHRINK FILM

AUTO40 UNICA – AUTO60 UNICA

VERY FLEXIBLE AND PERFORMING AUTOMATIC L SEALERS FOR SHRINK FILM,
SUITABLE FOR THE PACKAGING OF DIFFERENT PRODUCTS:
FOOD, INDUSTRIAL, GRAPHIC PRODUCTS, ETC.

automatic l sealers

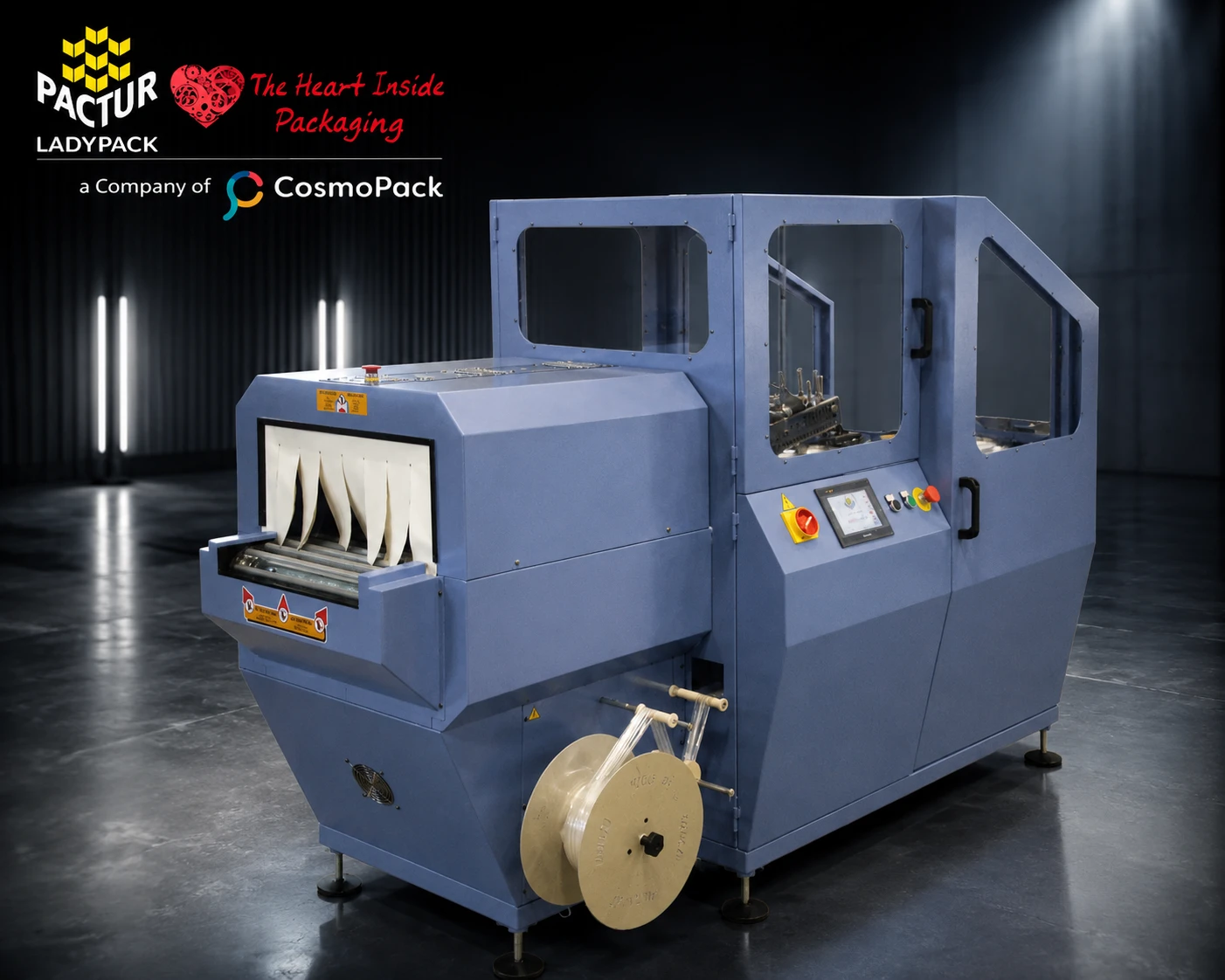

AUTO 40 UNICA STAINLESS STEEL

Automatic l sealers Automatic l sealers

MANUFACTURER OF
AUTOMATIC L SEALERS FOR PACKAGING WITH SHRINK FILM

AUTO 40 UNICA AUTO 60 UNICA

UNICA !!!
WHY?

Because the adjustments are automatic, only with the pressure of a button.
Because the set parameters are recalled automatically.
Because the memorizable sizes are 20, upon request 40.
Because the sealer always seals in the
MIDDLE OF THE PRODUCT HEIGHT.
Because the performances are high.
BECAUSE THE PRICE IS VERY COMPETITIVE, compared to the performances.
BECAUSE IT IS MANUFACTURED WITH QUALITY AND CARE.



Automatic l sealers Automatic l sealers

TECHNICAL DATA

MACHINE AUTO 40

MACHINE AUTO 60

Sealer dimensions 360×490 510×610
Conveyor speed 8-28 mt/min 8-28 mt/mm
Power supply 380 Volt Trifase 380 Volt Trifase
Consumption in Kw. 10-15 15-18
Compressed air supply A.re 6/8 A.re 6/8
Air consumption 153 NL/min 226 NL/min
Max film roll diameter 350 350
Film width H 500 H 700

PRODUCT DIMENSIONS

Max product width 250 450
Max product length 450 550
Standard product height 120 150
Increased product height 220

MACHINE OVERALL DIMENSIONS

Total length 2.225 2.825
Total width 925 1185
Total height 1.610 1.610

USABLE SHRINK FILMS: PO, PE
WITHOUT ANY SEALER CHANGE OR MODIFICATION

FOR FURTHER INFORMATION, PLS CONTACT US

These machines are available with three versions of shrink tunnel:
Shrink tunnel with teflon net conveyor belt
Shrink tunnel with metal net conveyor belt
Shrink tunnel with silicon coated bars

VIDEOS
